£39.99

Philex SLx RF modulator

Philex SLx RF modulator
New Page 1

Philex SLx RF modulator

Great for when you have no RF output on your receiver, ideal for Technomate TM6800 TM6900

Description

  • Easy set-up - simply plugs into TV's existing coax/RF input

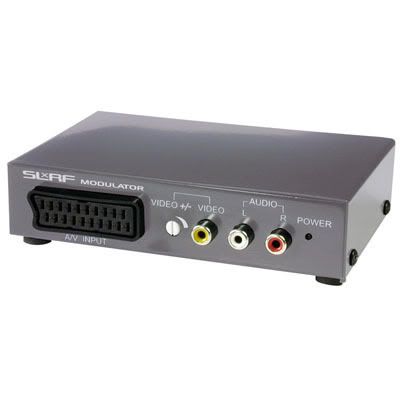

  • Scart, Phono and aerial inputs

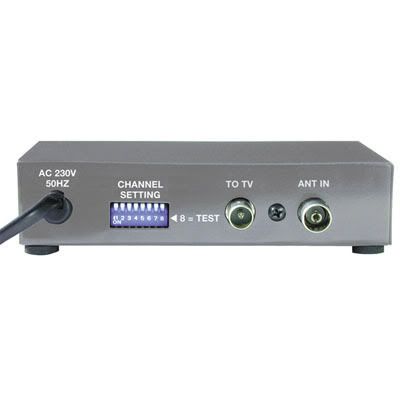

  • Wideband - 8-way DIP switch enables AV signal to be viewed on TV channels 21 to 69
  • Adjustable video enhancement
  • Durable metal casing
  • Mains powered - no need for additional AC/DC power adaptor

Photobucket - Video and Image Hosting

Specifications

  • System PAL I
  • ANT to TV 40-1000MHz: -2~+4dB
  • ANT/TV port IEC169-2(f)/IEC 169-2(m)
  • RF output 470-860MHz Adj./CH21-69 Adj
  • RF output level 70dBV (picture carrier)
  • Audio sub-carrier 6.0MHz
  • Audio carrier O/P level compared to video carrier -15dB
  • Audio/video input port Phono jack or Scart
  • Video input level Adjustable, recommend 1Vpp
  • Video input impedance 75Ω
  • Audio input level Recommend 1Vpp
  • Audio input impedance 13kΩ
  • Power supply 230VAC, 50Hz

Photobucket - Video and Image Hosting

Allows equipment with SCART or phono outputs to plug in to a TV or aerial socket
• Direct channel selection
• Wideband - TV channels 21 to 69
• Aerial loop-through
• SCART and phono inputs
• No loss in quality!
• Ideal for DVDs, digital TV boxes and CCTV cameras without RF/aerial sockets and for TVs without a Scart socket
• Mains powered
• Tough metal housing


• No loss in quality!
• Ideal for DVDs, digital TV boxes and CCTV cameras without RF/aerial sockets and for TVs without a Scart socket
• Mains powered
• Tough metal housing

Connect any composite video device, such as a CCTV camera or camcorder to the aerial socket of a TV. This versatile modulator allows you to select the RF channel with simple DIP switches. Composite video and stereo audio inputs are via phono (RCA) sockets or the SCART socket. An RF input is provided as well as an output, allowing loop-through connection, so that the output of this modulator can be added into an existing aerial distribution network. The full range of available channels means that multiple modulators can be ‘daisy-chained’ and also avoids conflict with existing broadcast channels (including Channel 5) and other domestic equipment (VCR, Sky, DVD etc). An additional ‘brightness’ control allows the video input level to be adjusted. This modulator is mains-powered and housed in a sturdy metal case.
